Introduction
Designing rotomolded parts is one of the most critical stages in the rotational molding manufacturing process. Many defects found in finished polyethylene products are not caused by poor raw materials or machine performance, but rather by poor part design. These design flaws can lead to cracking, warping, reduced mechanical strength, premature failure, and increased production costs.
Whether you manufacture water tanks, industrial containers, agricultural equipment, or custom rotomolded products, understanding these common design mistakes can significantly improve product quality, reduce scrap rates, and increase production efficiency.
In this article, we examine the seven most common Rotomolding design mistakes and provide practical engineering solutions to help manufacturers produce stronger, more reliable, and longer-lasting polyethylene products.
Why Is Proper Rotomolding Design So Important?
In the rotational molding process, powdered polyethylene is placed inside a mold, which rotates simultaneously around two perpendicular axes while being heated. As the material melts, it coats the inner surface of the mold uniformly, creating a seamless hollow product.
Unlike injection molding, where high pressure forces molten plastic into the cavity, Rotomolding relies entirely on gravity, heat distribution, and continuous rotation. Because of this unique manufacturing method, the geometry of the part plays a critical role in achieving consistent wall thickness, structural integrity, and dimensional accuracy.
A well-engineered Rotomolding design offers several important advantages:
- Uniform wall thickness throughout the part
- Reduced internal stresses
- Higher mechanical strength
- Improved impact resistance
- Lower risk of cracking and premature failure
- Better dimensional stability
- Shorter production cycles
- Reduced material waste
- Lower manufacturing costs
- Longer service life
Conversely, poor design can create weak points, uneven material distribution, excessive cycle times, and higher production costs.
Non-Uniform Wall Thickness
One of the most common Rotomolding part design mistakes is designing components with inconsistent wall thicknesses.
Since polyethylene powder gradually melts and flows over the mold surface during rotation, areas with excessive thickness require more heating time, while thinner sections heat much faster. This imbalance creates uneven thermal distribution and significantly increases the likelihood of part defects.
Consequences of Uneven Wall Thickness
Non-uniform wall thickness can result in:
- Weak structural areas
- Cracking in thin sections
- Longer heating cycles
- Material degradation in thick areas
- Warpage after cooling
- Uneven cooling rates
- Increased internal stress
- Higher reject rates
These issues become even more critical in large products such as polyethylene water tanks, industrial containers, and agricultural equipment.
Engineering Solution
Design the part with the most uniform wall thickness possible. Whenever transitions are necessary, use gradual thickness changes instead of abrupt variations. This approach promotes even material distribution, consistent heating, and improved mechanical performance.
Sharp Corners and Small Radii
Sharp corners are among the most common causes of Rotomolded part failure.
Unlike metals, polyethylene does not perform well in areas where stresses become concentrated. During both molding and service, sharp internal or external corners create localized stress concentrations that significantly reduce impact resistance.
Why Are Sharp Corners a Problem?
Sharp corners can cause:
- Poor material flow
- Reduced wall thickness
- Stress concentration
- Increased risk of cracking
- Lower impact resistance
- Uneven heat distribution
- Reduced product lifespan
These problems become even more severe when the product is exposed to repeated loading, outdoor environments, or low temperatures.
Engineering Solution
Always incorporate generous corner radii into your design. As a general guideline, the inside radius should be at least three to five times the nominal wall thickness whenever possible. Larger radii promote better material distribution, reduce stress concentrations, and improve the structural performance of the finished product.
Improper Design of Ribs and Reinforcements
Ribs and reinforcing features are commonly added to Rotomolded parts to increase stiffness and improve structural performance without significantly increasing overall wall thickness. However, if they are not properly designed, they can become weak points that lead to Rotomolded part failure instead of improving strength.
Poorly designed ribs often create uneven wall sections, excessive heat accumulation, and localized stress concentrations, all of which negatively affect the quality and durability of the finished product.
Common Design Problems
The most frequent rib design mistakes include:
- Excessively thick ribs
- Poor transition between ribs and the main wall
- Heat accumulation during the heating cycle
- Stress concentration at rib intersections
- Uneven material distribution
- Increased cooling time
- Warpage after molding
Engineering Solution
Ribs should generally be thinner than the main wall of the part and should connect to the primary structure using smooth, gradual transitions with generous radii. This minimizes stress concentration while ensuring uniform heating and cooling throughout the molding cycle.
When additional strength is required, it is usually more effective to optimize the rib geometry than simply increasing wall thickness.
Ignoring Material Shrinkage
All polyethylene materials shrink during cooling. One of the most common mistakes in Rotomolding design is failing to account for this natural material behavior during the mold design stage.
Ignoring shrinkage can lead to dimensional inaccuracies, warpage, assembly problems, and poor product performance.
The shrinkage rate varies depending on several factors, including the resin grade, wall thickness, cooling conditions, and processing parameters.
Factors Affecting Shrinkage
Material shrinkage is influenced by:
- Polyethylene grade
- Wall thickness
- Oven temperature
- Heating cycle duration
- Cooling rate
- Mold design
- Part geometry
Understanding these variables is essential for producing dimensionally accurate Rotomolded products.
Engineering Solution
Always incorporate the expected shrinkage rate into the mold design. Material suppliers typically provide recommended shrinkage values in their technical data sheets, but these values should also be validated through production experience and prototype testing.
Proper shrinkage compensation ensures accurate dimensions, minimizes warpage, and reduces costly mold modifications.
Poor Design of Inserts, Threads, and Connection Points
Many Rotomolded products incorporate threaded fittings, inserts, flanges, or connection ports for plumbing, industrial, or agricultural applications.
If these areas are not properly engineered, they often become the weakest points of the product, resulting in leaks, cracks, or structural failure under mechanical loads.
This issue is especially critical in polyethylene water tanks, chemical storage tanks, fuel tanks, and industrial containers.
Key Design Considerations
When designing connection points, engineers should ensure that:
- Adequate wall thickness is provided around fittings.
- Reinforcement features are incorporated where necessary.
- Inserts are positioned away from high-stress areas.
- Fine or delicate thread designs are avoided whenever possible.
- Loads are distributed evenly around the connection area.
Properly designed connection points significantly improve product durability and reduce maintenance requirements throughout the product’s service life.
Engineering Solution
Connection areas should be reinforced using optimized geometry rather than excessive wall thickness. The design should distribute mechanical loads evenly while allowing sufficient material flow during the Rotomolding process.
When necessary, molded-in inserts should be positioned in low-stress regions to maximize structural integrity and long-term performance.
Failing to Design for Easy Part Removal
One of the most overlooked aspects of Rotomolding part design is ensuring that the finished product can be removed from the mold easily and safely.
Unlike many other plastic manufacturing processes, Rotomolding produces seamless hollow parts that must be manually or mechanically removed after cooling. If the geometry of the part does not allow for smooth demolding, excessive force may be required, increasing the risk of damaging both the product and the mold.
Problems Caused by Difficult Demolding
Poor demolding design can lead to:
- Cracks during part removal
- Surface scratches and cosmetic defects
- Permanent deformation of the part
- Increased production cycle time
- Reduced mold life
- Higher labor costs
- Increased production downtime
Engineering Solution
Design every Rotomolded part with an appropriate draft angle to facilitate smooth release from the mold. Avoid unnecessary undercuts whenever possible, and ensure that deep cavities or complex geometries do not trap the part during demolding.
Proper draft angles not only reduce the risk of damage but also improve production efficiency and extend mold service life.
Ignoring the Product’s Real Operating Conditions
A Rotomolded part may perform well during production but fail prematurely if its actual working environment was not considered during the design stage.
One of the most common engineering mistakes is designing a product without evaluating how it will be used throughout its service life.
For example, a polyethylene water tank installed outdoors experiences completely different environmental conditions than a chemical storage tank used inside an industrial facility. Designing both products with the same structural requirements can lead to premature failure.
Operating Conditions That Must Be Considered
Engineers should evaluate factors such as:
- Static and dynamic mechanical loads
- Impact resistance requirements
- UV exposure
- Temperature fluctuations
- Wind loads
- Chemical resistance
- Long-term creep behavior
- Transportation and handling conditions
Engineering Solution
Before beginning the design process, perform a comprehensive analysis of the product’s operating environment. Material selection, wall thickness, reinforcement strategy, and overall geometry should all be optimized based on the product’s intended application.
A design tailored to real-world operating conditions will significantly increase durability, safety, and product lifespan.
The Role of Mold Design in Preventing Rotomolded Part Failure
Even the best-designed product cannot perform properly if the mold itself is poorly engineered.
A high-quality Rotomolding mold ensures uniform heat distribution, consistent material flow, and balanced cooling throughout the production cycle. These factors directly influence wall thickness, dimensional accuracy, and the mechanical properties of the finished product.
H3: Characteristics of a High-Quality Rotomolding Mold
A well-designed mold should provide:
- Uniform mold wall thickness
- Efficient heat transfer
- Proper venting system
- Smooth internal surfaces
- Balanced structural rigidity
- Easy maintenance and cleaning
- Reliable part release
Investing in high-quality mold engineering reduces production defects, minimizes scrap, and improves long-term manufacturing efficiency.
Davaran Fydar’s Practical Experience in Optimizing Rotomolded Part Design

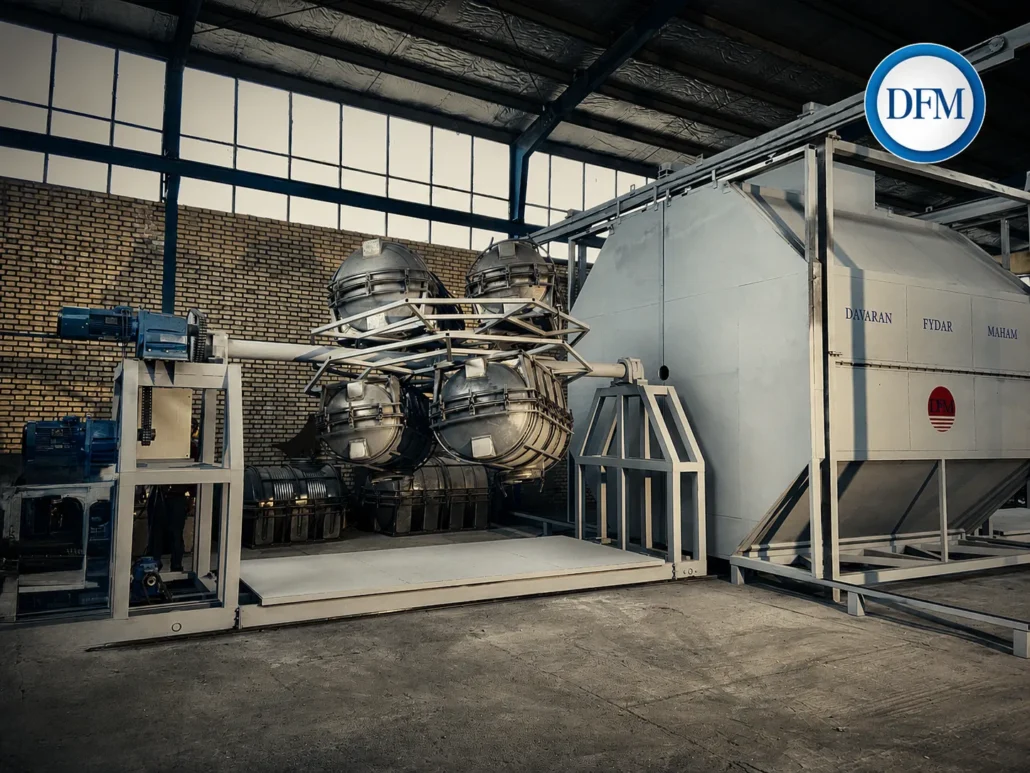

At Davaran Fydar Maham, our engineering team has been involved in the design and manufacturing of Rotomolding production lines, molds, and polyethylene processing equipment for many years.
Throughout numerous industrial projects, we have found that most failures in Rotomolded parts originate during the design stage rather than during manufacturing.
By redesigning corner radii, optimizing wall thickness distribution, improving reinforcement geometry, and refining mold engineering, we have helped manufacturers significantly reduce cracking, warpage, and production defects while improving product quality and operational efficiency.
Our experience demonstrates that successful Rotomolding is not solely dependent on advanced machinery—it begins with sound engineering principles and intelligent product design.
Rotomolded Part Design Checklist
Before approving a new Rotomolding design, verify the following:
- Wall thickness is as uniform as possible.
- Corners include generous radii.
- Ribs and reinforcements are properly designed.
- Material shrinkage has been incorporated into mold dimensions.
- Connection points are adequately reinforced.
- Draft angles allow easy part removal.
- Expected service conditions have been fully evaluated.
- Mold design supports uniform heating and cooling.
- The selected polyethylene grade matches the intended application.
Using this checklist during the design phase can substantially reduce production defects and improve overall product performance.
Conclusion
Design plays a fundamental role in the success of any Rotomolded product. Many common manufacturing defects—including cracking, warping, dimensional instability, and premature failure—can be traced back to avoidable design mistakes.
By maintaining uniform wall thickness, incorporating generous corner radii, designing effective reinforcement features, accounting for material shrinkage, and considering real operating conditions, manufacturers can produce stronger, higher-quality polyethylene products while minimizing production costs and scrap rates.
If you are planning to develop new Rotomolded products or optimize your existing manufacturing process, partnering with an experienced Rotomolding production line designer and manufacturer can significantly improve product quality, manufacturing efficiency, and long-term profitability.
